| ขั้นต่ำ: | 1 |
| ราคา: | negotiable |
| การบรรจุแบบมาตรฐาน: | กล่องกล่อง |
| ระยะเวลาการจัดส่ง: | 90 วัน |
| วิธีการจ่ายเงิน: | L/C,T/T,D/P,D/A |
| ความสามารถในการจัดหา: | 1 ชุด/ชุด ทุก 15 ~ 35 วัน |
New Machine description

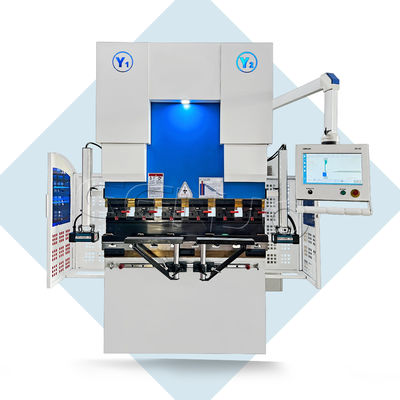

GENUO's Excellent ESC series is the latest generation of high-performance synchronized CNC Press Brake.Combining GENUO's independently developed controller,it maximizes value creation and reduces costs.User-friendly operating system and first-class design. Adhering to the philosophy of GENUO
(Details Create Quality).With super quality and high precision, it also has a huge competitive advantage.
More convenient to use, high cost performance!
| Standard Equipment | Optional Equipment |
| ▲ GENUO ETC-16T 4 Axis CNC Control | △ ETC-16T 5 Axis/7 Axis CNC Control |
| ▲ Integral welded rigid high tensile steel frame | △ DSP or SDKELI Lasersafe protection guard |
| ▲ High precision Y1,Y2 axis synchronized closed-loop feedback | △ Energy saving & low noise main servo SVP control |
| ▲ Accurate X axis back gauge system | △ 2 Axis(X,R) or 4-Axis (X,R,Z1,Z2)back gauge |
| ▲ CNC Motorized crowning system | △ The CNC Bending Sheet Follower |
| ▲ European-style punch and 4V/2V/1V Dies | △ WILA type top and bottom tool clamping system |
| ▲ Fast punch clamps and movable sliding front support | △ Bending tools management cabinet or trolley |
| A | B | D | E | C | |||||
| Model | Nominal Pressure | Length of Table | Distance Between Columns | Throat Death | Open Height | Ram Strokes | Motor Power | Approx Weight | Overall Dimension |
| ESC | (KN) | (mm) | (mm) | (mm) | (mm) | (mm) | (kw) | (kg) | (L x W x H)(mm) |
| 40T/1600 | 400 | 1600 | 1250 | 300 | 420 | 150 | 4 | 2800 | 1950*1750*2350 |
| 63T/2500 | 630 | 2500 | 1960 | 320 | 420 | 150 | 5.5 | 4200 | 2850*1750*2350 |
| 80T/2500 | 800 | 2500 | 1960 | 350 | 480 | 200 | 7.5 | 4500 | 2850*1850*2450 |
| 100T2500 | 1000 | 2500 | 2000 | 400 | 480 | 200 | 7.5 | 5300 | 2850*1850*2500 |
| 100T/3200 | 1000 | 3200 | 2600 | 400 | 480 | 200 | 7.5 | 6500 | 3850*1850*2600 |
| 125T/2500 | 1250 | 2500 | 2000 | 400 | 480 | 200 | 7.5 | 5500 | 3000*1850*2500 |
| 125T/3200 | 1250 | 3200 | 2600 | 400 | 480 | 200 | 11 | 7000 | 3850*1850*2600 |
| 125T/4000 | 1250 | 4000 | 3200 | 400 | 480 | 200 | 11 | 8500 | 4610*1850*2600 |
| 160T/3200 | 1600 | 3200 | 2600 | 400 | 480 | 200 | 11 | 8800 | 3900*1900*2600 |
| 160T/4000 | 1600 | 4000 | 3200 | 400 | 480 | 200 | 11 | 10000 | 4650*1900*2700 |
| 200T/3200 | 2000 | 3200 | 2600 | 400 | 480 | 200 | 15 | 11600 | 3900*1900*2700 |
| 200T/4000 | 2000 | 4000 | 3200 | 400 | 480 | 200 | 15 | 14000 | 4700*1900*2800 |
| 200T/5000 | 2000 | 5000 | 4000 | 400 | 480 | 200 | 15 | 16000 | 5800*1900*2900 |
| 200T/6000 | 2000 | 6000 | 4900 | 400 | 480 | 200 | 15 | 18000 | 6800*1900*3000 |
| 250T/3200 | 2500 | 3200 | 2600 | 400 | 520 | 250 | 18.5 | 12500 | 3900*2100*2800 |
| 250T/4000 | 2500 | 4000 | 3200 | 400 | 520 | 250 | 18.5 | 15000 | 4700*2100*2900 |
| 250T/5000 | 2500 | 5000 | 4000 | 400 | 520 | 250 | 18.5 | 17000 | 5800*2100*3000 |
| 250T/6000 | 2500 | 6000 | 4900 | 500 | 520 | 250 | 18.5 | 20000 | 6500*2100*3100 |
| 320T/3200 | 3200 | 3200 | 2600 | 400 | 520 | 250 | 22 | 14500 | 4000*2100*3000 |
| 320T/4000 | 3200 | 4000 | 3200 | 400 | 520 | 250 | 22 | 17500 | 4800*2200*3200 |
| 320T/5000 | 3200 | 5000 | 4000 | 500 | 520 | 250 | 22 | 20000 | 5800*2200*3400 |
| 320T/6000 | 3200 | 6000 | 4900 | 500 | 520 | 250 | 22 | 23500 | 6500*2200*3600 |
| 400T/4000 | 4000 | 4000 | 3200 | 500 | 600 | 320 | 30 | 22000 | 4800*2300*3500 |
| 400T/6000 | 4000 | 6000 | 4900 | 500 | 600 | 320 | 30 | 31000 | 6500*2300*3800 |
วิดีโอ
วิดีโอ
วิดีโอ
วิดีโอ
วิดีโอ
วิดีโอ
วิดีโอ
|
|
